36V-48V 400A 1268-5403 Replacement Curtis Programmable DC Sepex Motor Controller for Curtis Ezgo Club Car Golf Cart

Sale!

Original price was: $358.99.Current price is: $287.99.

Specifications:

  • Rated voltage: DC 36V-48V
  • Continuous current: 400A (peak 600A, 10 seconds)
  • Compatible models: Ezgo TXT/RXV, Club Car DS/Precedent
  • Original replacement model: Curtis 1268-5403
  • Communication interface: RS-232 programming port
  • Operating temperature: -30℃~75℃
  • Protection level: IP65
  • Dimensions/weight: 185x120x65mm
  • Weight: 1.8kg

Description

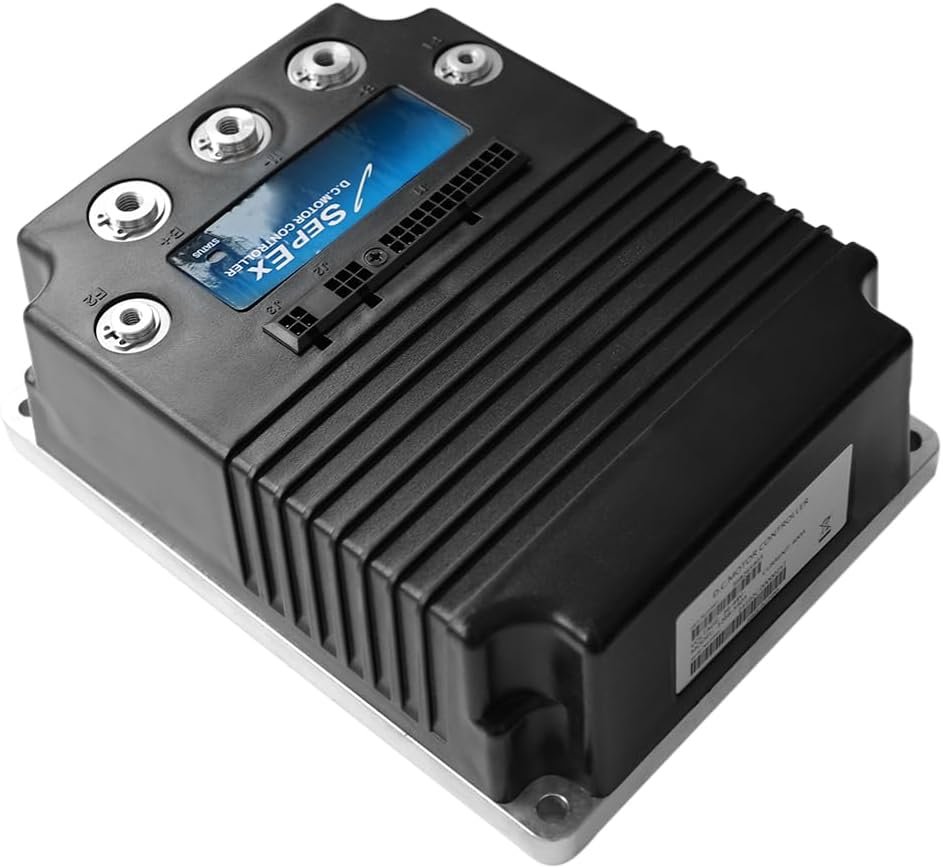

[High-performance programmable DC Sepex motor controller]

36V-48V 400APerfect replacement for Curtis 1268-5403 | Suitable for Ezgo/Club Car golf carts

Core selling points

✅ Precise replacement: Perfectly compatible with Curtis 1268-5403 controller, optimized for Ezgo/Club Car golf carts
✅ Wide voltage support: 36V/48V adaptive, covering the needs of mainstream electric vehicles
✅ Powerful power: 400A high current output, 30% increase in torque, and significantly enhanced climbing performance
✅ Intelligent programming: Support PC-side parameter adjustment (programming cable required), custom acceleration/deceleration curves, speed limit, etc.
✅ Multiple protection: IP65 waterproof and dustproof + overcurrent/overheating/undervoltage triple protection



Parameter details:

  • Rated voltage: DC 36V-48V
  • Continuous current: 400A (peak 600A, 10 seconds)
  • Compatible models: Ezgo TXT/RXV, Club Car DS/Precedent
  • Original replacement model: Curtis 1268-5403
  • Communication interface: RS-232 programming port
  • Operating temperature: -30℃~75℃
  • Protection level: IP65
  • Dimensions/weight: 185x120x65mm
  • Weight: 1.8kg

Why choose us?

🔋 Performance upgrade: higher current carrying capacity, solve the problem of insufficient power of the original car
🔧 Plug and play: retain the original car wiring harness interface, no need to modify, quick installation in 15 minutes
📈 Adjustable parameters: support modification of PWM frequency, current limit, regenerative braking intensity and other 20+ parameters
⚡ Stable and durable: industrial-grade IGBT module, heat dissipation efficiency increased by 40%, life of 50,000 hours



🚗 Upgrade your golf cart performance now! Professional engineer team support, provide 1 to 1 debugging guidance!
