Upgrading your golf cart to a SPIDERWAY lithium battery is one of the most effective ways to improve performance, reduce maintenance, and extend lifespan. In this guide, we break down a real-world EZGO RXV lithium battery conversion case, including a detailed installation walkthrough and authentic customer feedback.
If you’re searching for “EZGO RXV lithium battery upgrade,” “golf cart LiFePO4 battery replacement,” or “plug and play golf cart battery conversion”, this article provides a complete, experience-based solution.
Real Customer Review: Why Choose SPIDERWAY Lithium Battery?
A verified customer shared their experience after upgrading to a SPIDERWAY LiFePO4 battery for EZGO RXV:
- True Plug-and-Play Installation
No complex disassembly, no rewiring, no programming. Simply connect and go. - Factory Direct Support
The customer contacted the SPIDERWAY factory in China and received a response within 24 hours, including installation guidance and a competitive direct price. - Fast Delivery (USA Local Warehouse)
Shipping took only 1 week from California to Connecticut, demonstrating strong logistics capability. - Secure B2B Payment
Payment was completed via Payoneer, a trusted international business payment solution.

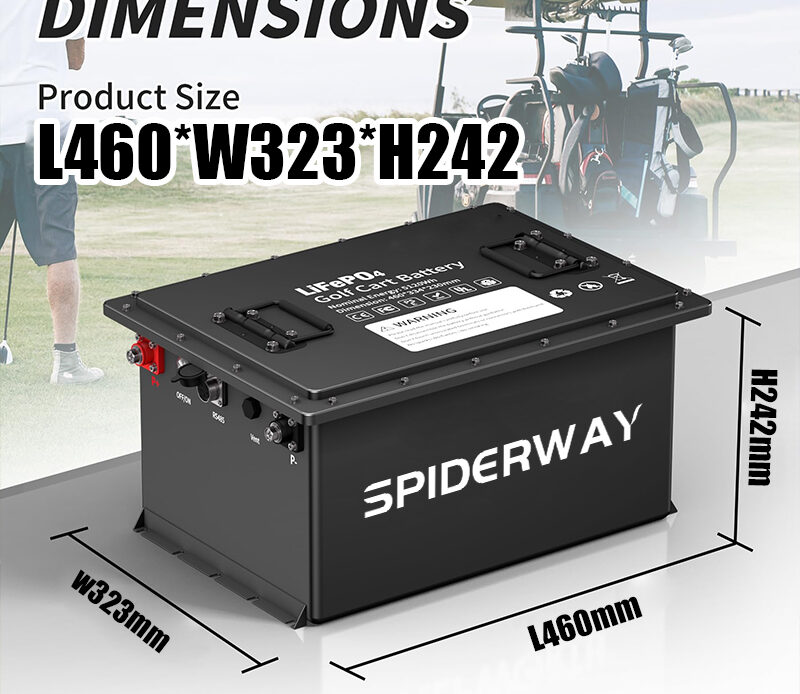

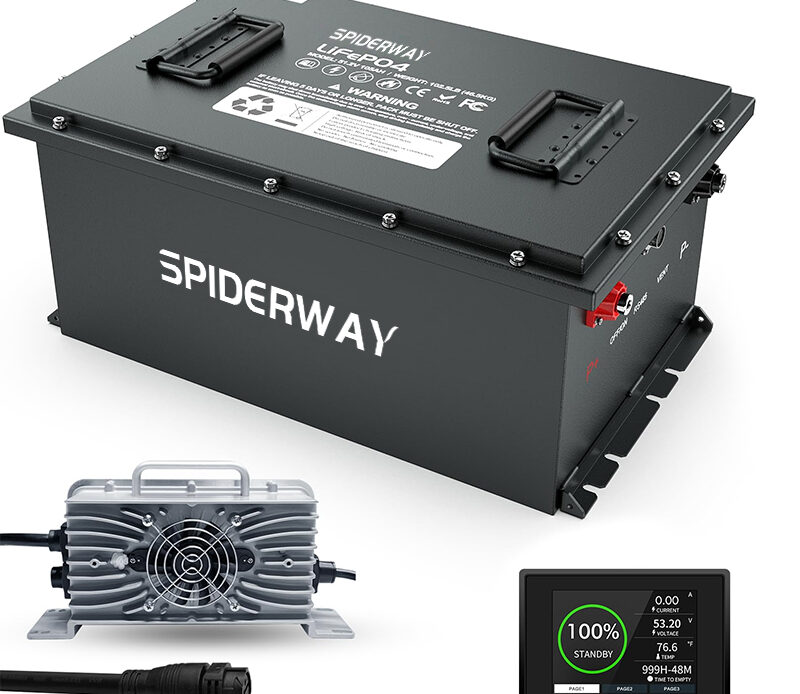

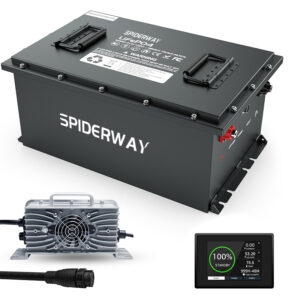

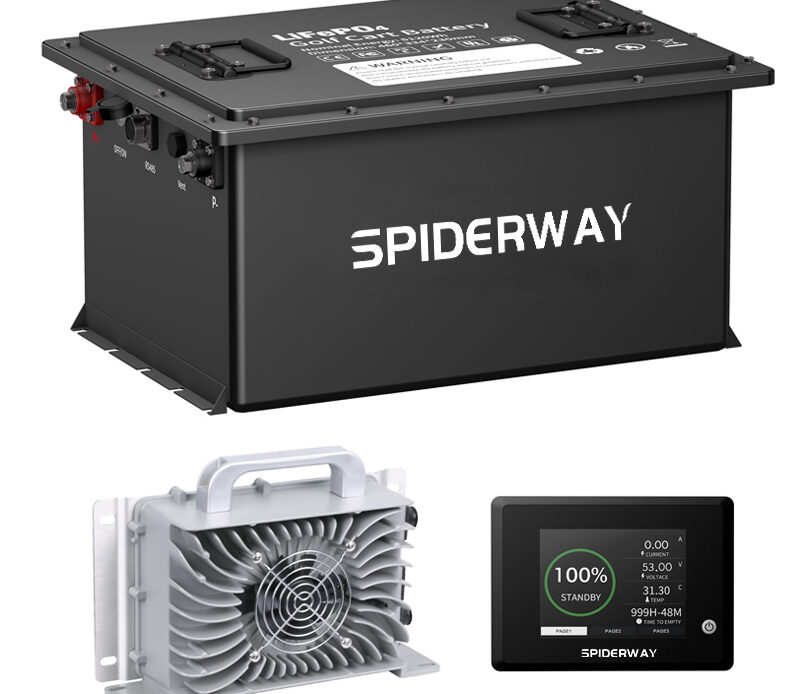

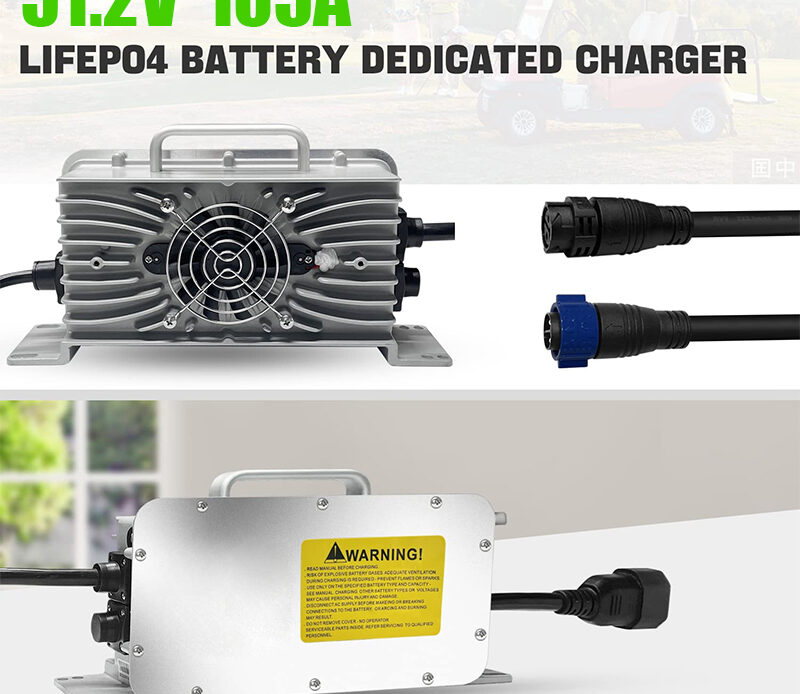

48V (51.2V) 105Ah LiFePO4 Battery Kit with 25A Charger | Fast Charging Safe and Durable for Golf Carts
Technical Specifications
Basic Parameters
Model | 51.2V105Ah |
Nominal Voltage | 51.2V |
Nominal Capacity | 105Ah |
Energy | 5.376kWh |
Charge Voltage | DC 58.4V |
Standard Charge Current | 0.5C (52.5A) |
Max. Charge Current | 100A |

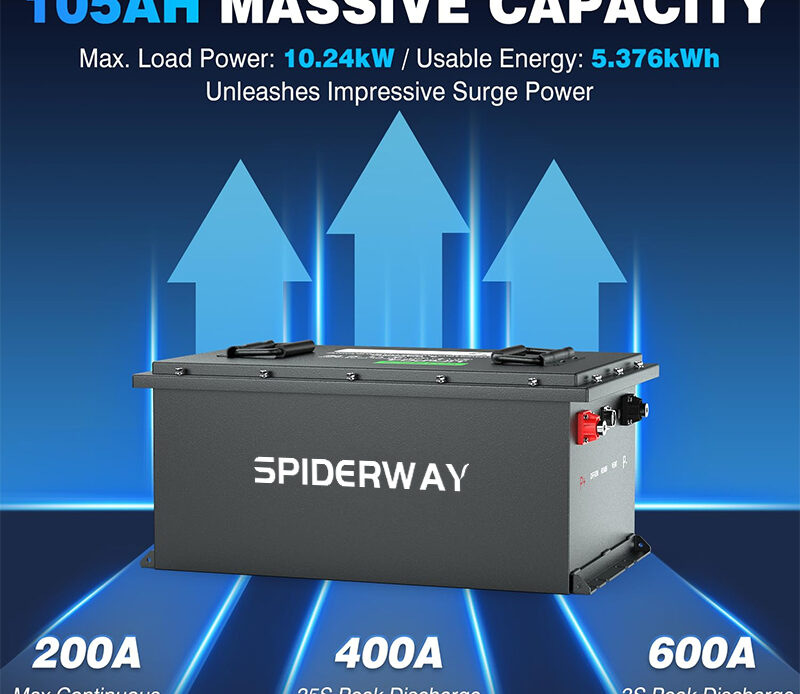

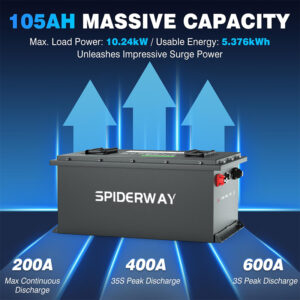

Max. Discharge Current | 200A |
Pulse Current | 250A (300ms) |
Customer Conclusion:
“I was skeptical at first, but the ease of installation, fast delivery, and direct factory support made this upgrade absolutely worth it.”
Why Upgrade EZGO RXV to Lithium Battery?
Switching from lead-acid to LiFePO4 lithium battery offers significant advantages:
1. Maintenance-Free Operation
No watering systems, no acid corrosion, no regular servicing.
2. Lightweight & High Efficiency
- Lead-acid battery: ~80–90 lbs each (multiple units)
- SPIDERWAY lithium battery: ~53 kg (single integrated unit)
3. Longer Lifespan
- 3000–5000+ cycles vs. 300–500 cycles for lead-acid
4. Faster Charging
Lithium batteries support rapid charging with higher efficiency.
5. Smart Monitoring

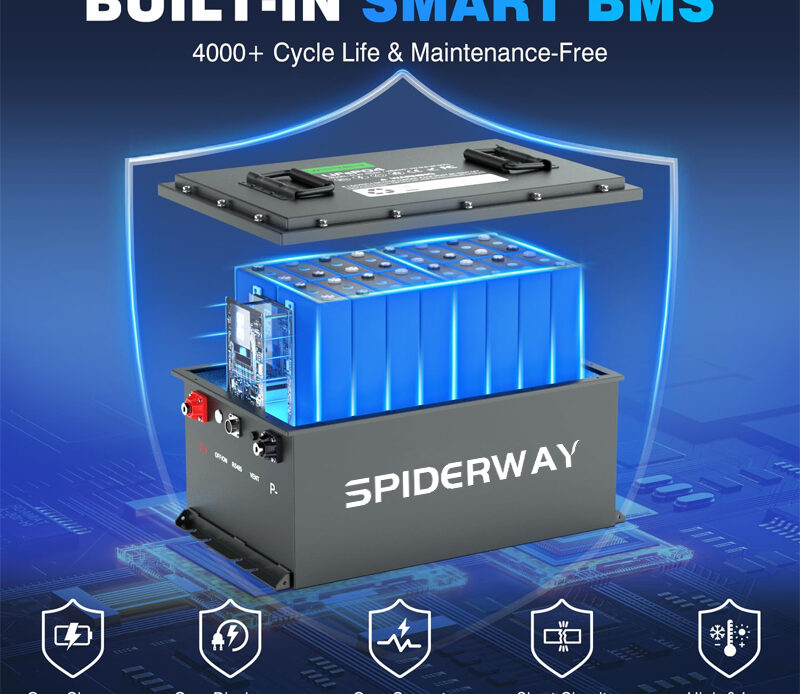

Built-in Bluetooth BMS + APP for real-time battery status tracking.
Step-by-Step: EZGO RXV Battery Removal (Lead-Acid)
Before installing your SPIDERWAY lithium battery, safely remove the old battery pack:
Key Steps:
- Turn off cart, remove seat, switch to TOW mode
- Disconnect watering system (if installed)
- Remove serial cables (start with middle negative)
- Disconnect positive and negative terminals
- Remove hold-down brackets and bolts
- Carefully lift out batteries (use protective gear)
- Clean battery tray thoroughly (remove corrosion and debris)
Important: Lead-acid batteries are heavy and hazardous—always wear gloves and eye protection.
SPIDERWAY Lithium Battery Installation Guide

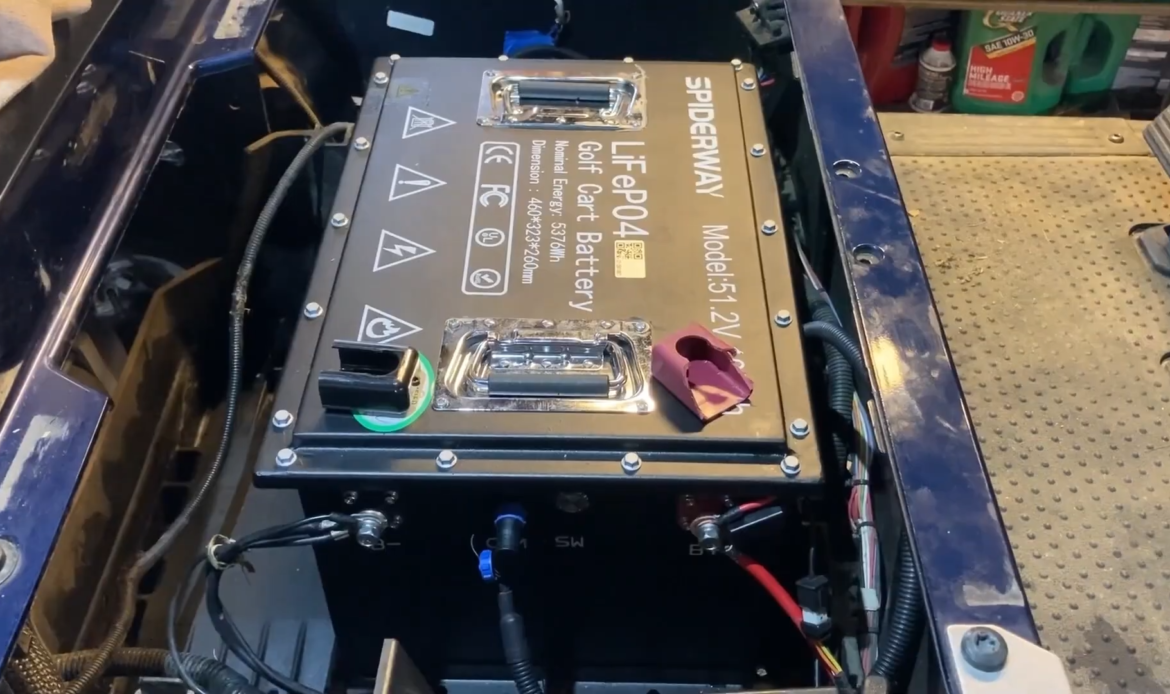

Step 1: Position the Battery
- Use 2 people to lift (~53 kg)
- Place battery under seat with terminals facing passenger side
Step 2: Install External LED Display
- Remove cup holder and side panel
- Modify space to fit display
- Route communication cable through channel
Step 3: Electrical Connections
- Connect positive (red) to positive terminal
- Connect negative (black) to negative terminal
- Connect communication cable to COM port
- Optional: connect 48V to 12V converter for accessories
Step 4: Secure the Battery
- Drill mounting holes if needed
- Install bolts and brackets
- Ensure battery is firmly fixed (no movement)
Step 5: Initial Power-On
- Switch to RUN mode
- Turn key on → display lights up → system ready
Step 6: Charging & APP Setup

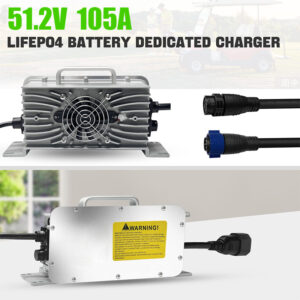

- Fully charge using lithium charger (do NOT use old charger)

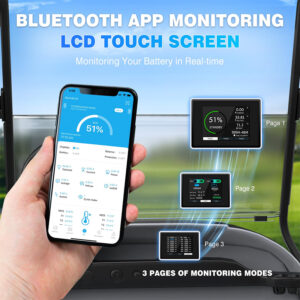

- Install Bluetooth APP (scan QR code)
- Connect to BMS for monitoring
Operational Tips for Long Battery Life
- Keep battery above 20% charge
- Inspect wiring weekly
- Keep terminals clean and dry
- Use only compatible lithium chargers
SPIDERWAY vs Traditional Golf Cart Battery Systems
| Feature | Lead-Acid Battery | SPIDERWAY Lithium Battery |
|---|---|---|
| Installation | Complex wiring | Plug & Play |
| Maintenance | High | None |
| Weight | Very heavy | Lightweight |
| Lifespan | 300–500 cycles | 5000+ cycles |
| Charging Time | Slow | Fast |
| Smart Features | None | Bluetooth APP |
Why SPIDERWAY is a Trusted Lithium Battery Manufacturer
SPIDERWAY leverages 20+ years of vehicle electrification experience, delivering:
- OEM-compatible plug-and-play battery systems
- High-performance LiFePO4 cells + advanced BMS
- Global logistics (US warehouse: 5–7 days delivery)
- Smart APP monitoring & diagnostics
FAQ: Golf Cart Lithium Battery Upgrade
Is lithium battery upgrade worth it for EZGO RXV?
Yes. It significantly improves performance, reduces maintenance, and lowers long-term costs.
Can I install a lithium battery myself?
Yes. SPIDERWAY systems are designed for plug-and-play installation, requiring minimal technical skills.
How long does a lithium golf cart battery last?
Typically 5–10 years, depending on usage and charging habits.
Do I need a new charger?
Yes. Always use a dedicated lithium battery charger.
Final Thoughts: A Smarter Upgrade for Your Golf Cart
Upgrading to a SPIDERWAY lithium battery for EZGO RXV is not just a replacement—it’s a complete performance transformation. With easy installation, fast delivery, factory support, and intelligent battery management, it offers one of the most cost-effective lithium upgrade solutions on the market.
For golf cart owners seeking reliability, efficiency, and long-term value, SPIDERWAY delivers a proven, real-world tested solution backed by customer satisfaction.
